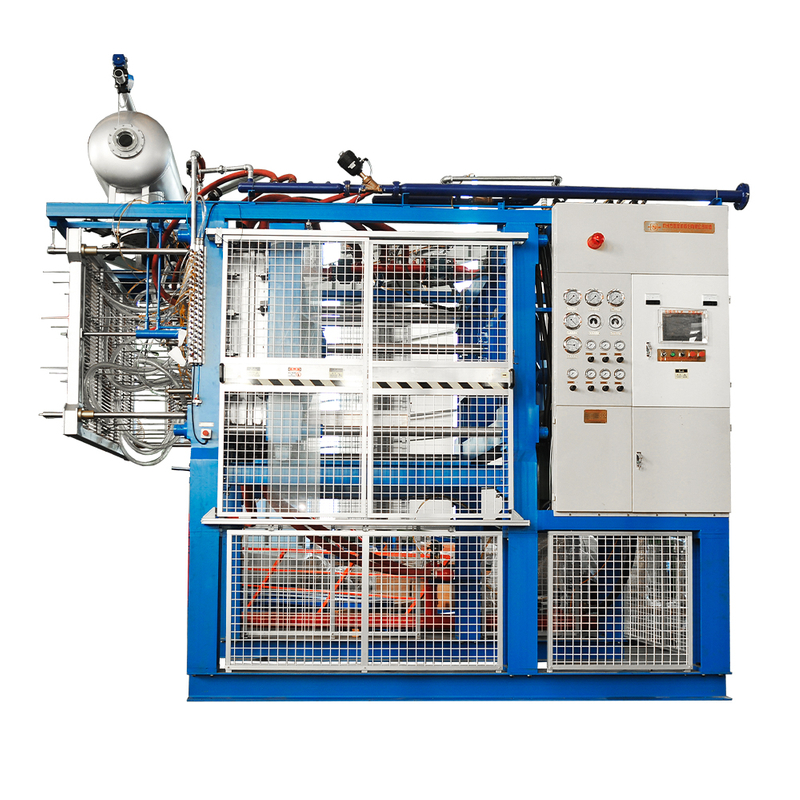

Automatic Vacuum Polystyrene Molding Machine for Decoration Ceiling Cornice

Product Description

The automatic vacuum polystyrene molding machine for decoration ceiling cornice has many improvements compared to the basic type shape molding machine and the features are as follows.

1. Machine structure:

a. All frame are welded onto 16/20mm steel plate with high machines legs. This greatly improves polystyrene moulding machine strength.

b. High machine legs are made by strong “H” type profile. It is easy for the client to install the machine (only prepare floor foundation).

2. Filling system: Adopts normal pressure, vacuum for high pressurized filling. Material filling is controlled by level sensor with double rotation chamber discharge and has 44 filling outlets.

3. Steam system: Adopts balance PID control valve with German gauge. This greatly improves steam accuracy and reduces consumption by around 20% compared with A/B type EPS shape moulding machine.

4. Cooling system: The molding machine for decoration ceiling cornice adopts big vacuum pump with vertical tank, equipped with vertical vacuum cooling water spray on the top. The vacuum cooling will be used as main cooling instead of water cooling (normally water cooling will be set up only 8-12s), which will keep the water content of product less than 10%.

5. Drainage system: Increased large for inlet and outlet of mould, adopts 8-1” inlet foe steam, ensuring fast cycle time,6/8-2” outlet for drainage system, 6” big drainage pipe is controlled by butterfly valve, Together they greatly increase heating and drainage speed of automatic vacuum polystyrene molding machine.

6. Control system:

a. Adopts PLC (Mitsubishi) and touch screen (Schneider) making operation easy.

b. All electronic components are from famous brands, which greatly improve the polystyrene molding machines stability.

c. The air cooling, steam, de-mould, pressure of filling are controlled by long-distance balance valve.

We do have a qualified group of English, Russian, Indian, Arabic speaking engineers and an able salesstaff that support us around the world. We set sales and service office in lndia, Iran, Syria, Egypt etc.

• Founded in 1988，over 600 staff and covered 100,000 sqm Workshop.

• Professional EPS, EPP, EPO, ETPU machinery manufacturer integrating R & D, production, sales andservice delivery, provides our clients with system solutions including design, training, operation and turn-key projects.

• Yearly around 2,200 sets machines outputs.

• Exported to more than 103 countries.

• The first drafter of National lndustry Standard of EPS machinery in China.


Since 1988, More Than 50,000 Units Equipment in 103 Countries and Area.

FANGYUAN boasts a pool of fine teams, with qualified EPS/EPP products as to moulds, equipment，resources, technologies, and with rich experience at production and operation.

PRE-SALES SERVICE

1. Inquiry And Consulting Support

2. Lastest Industry Trends

3. Offer Turn-key EPS Plant

4. Sample Testing Support

5. View Our Factory

6. Suggest Layout Support

AFTER-SALES SERVICE

1. One Year Warranty

2. Machine Test Video Before Delivery

3. English Manual, Electric Diagram Training How To Install And Running The Machine

4. Engineers Available To Service Machinery Overseas

5. 24 Hours Online Service

• 130,000 ㎡ Workshop.

• Yearly Around 2,200 Sets Machines Outputs.

• 24 Hours Technical Supports and Aftersales Service.

• Professional Maintenance and Offer All Kinds of Spare Parts
